This is my smallest tracked vehicle yet! Using dual N20 Gear Motors and a 1S lipo, it’s cheap and relatively easy to build.
PDF Manual: PilotTrakMicro
The PilotTrak Micro is a simple micro FPV tank, originally designed for running a leader wire or pullstring through tight areas while installing network cable. This is a smaller version of my original Pilot Trak V2, with a few updated features such as easier to print wheels and better tracks, similar to my Scout32 project.

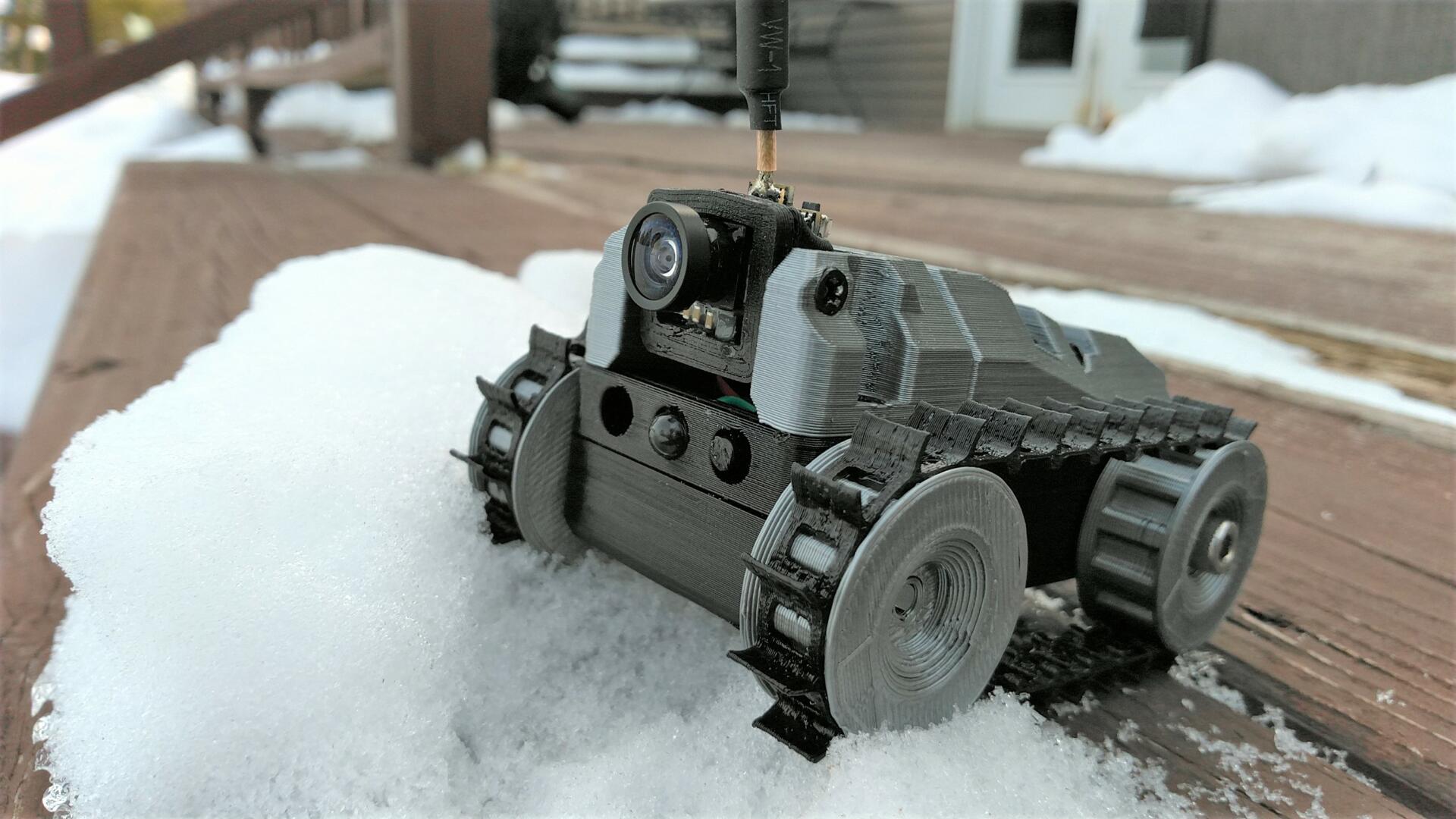

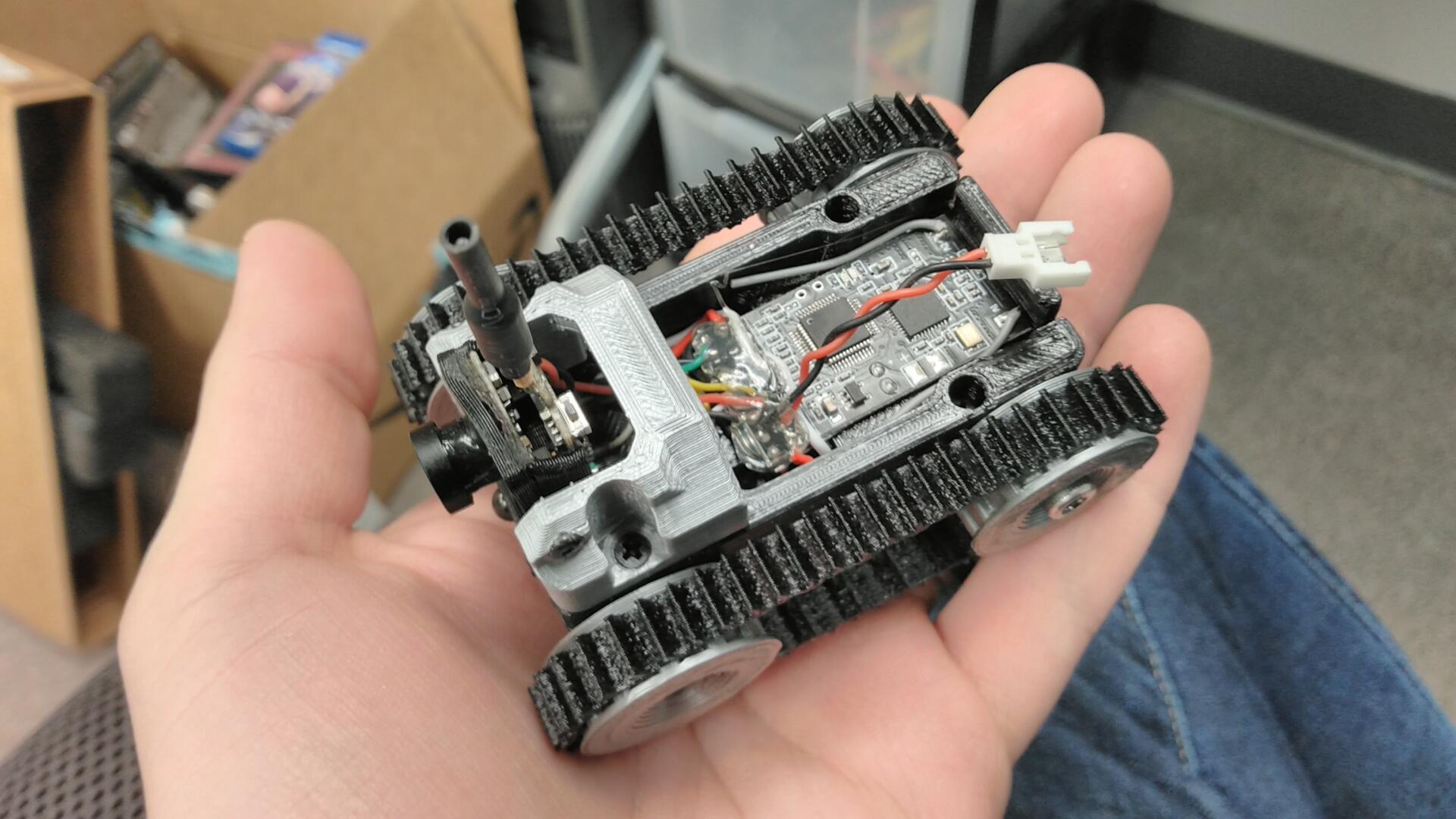

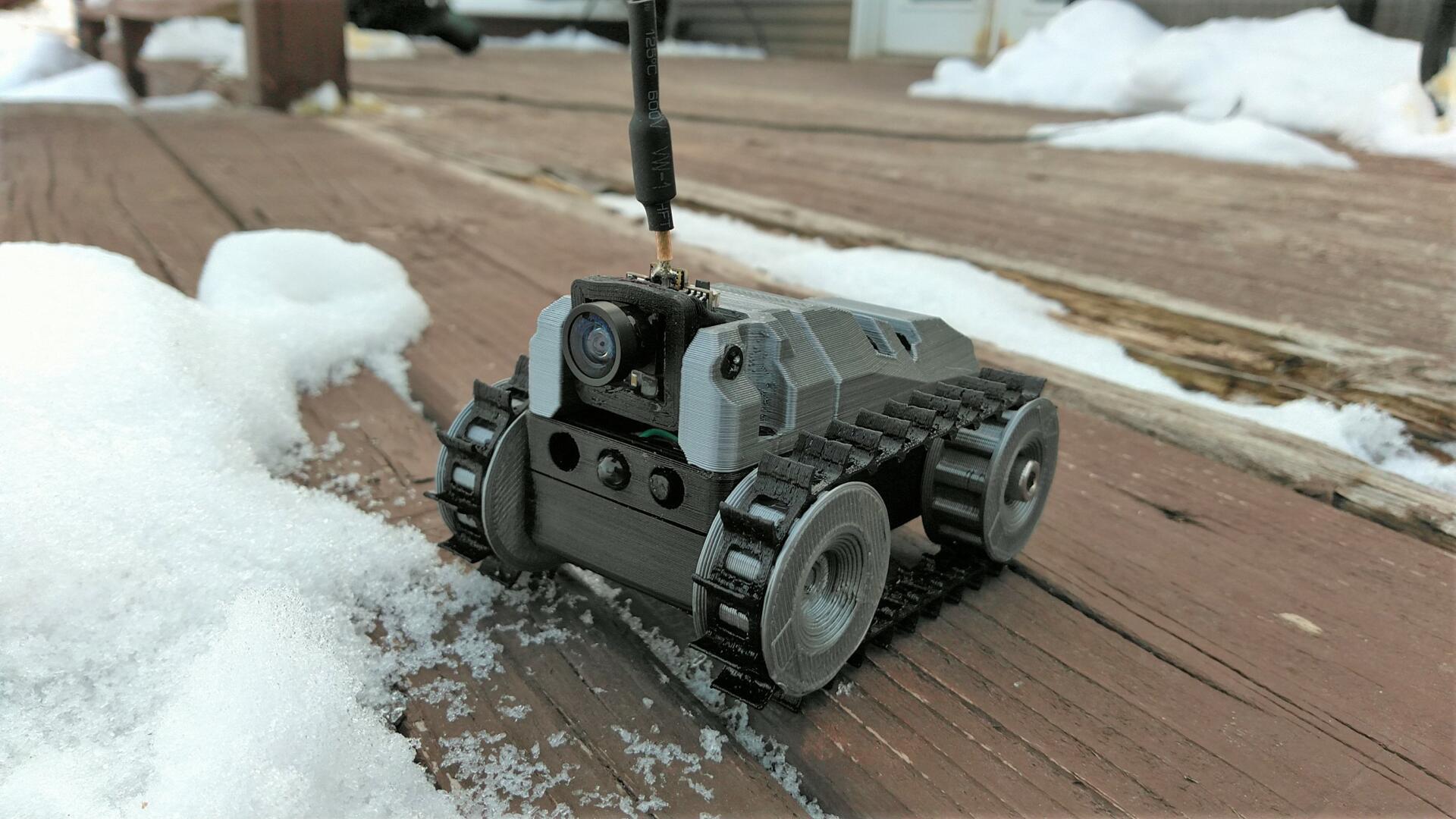

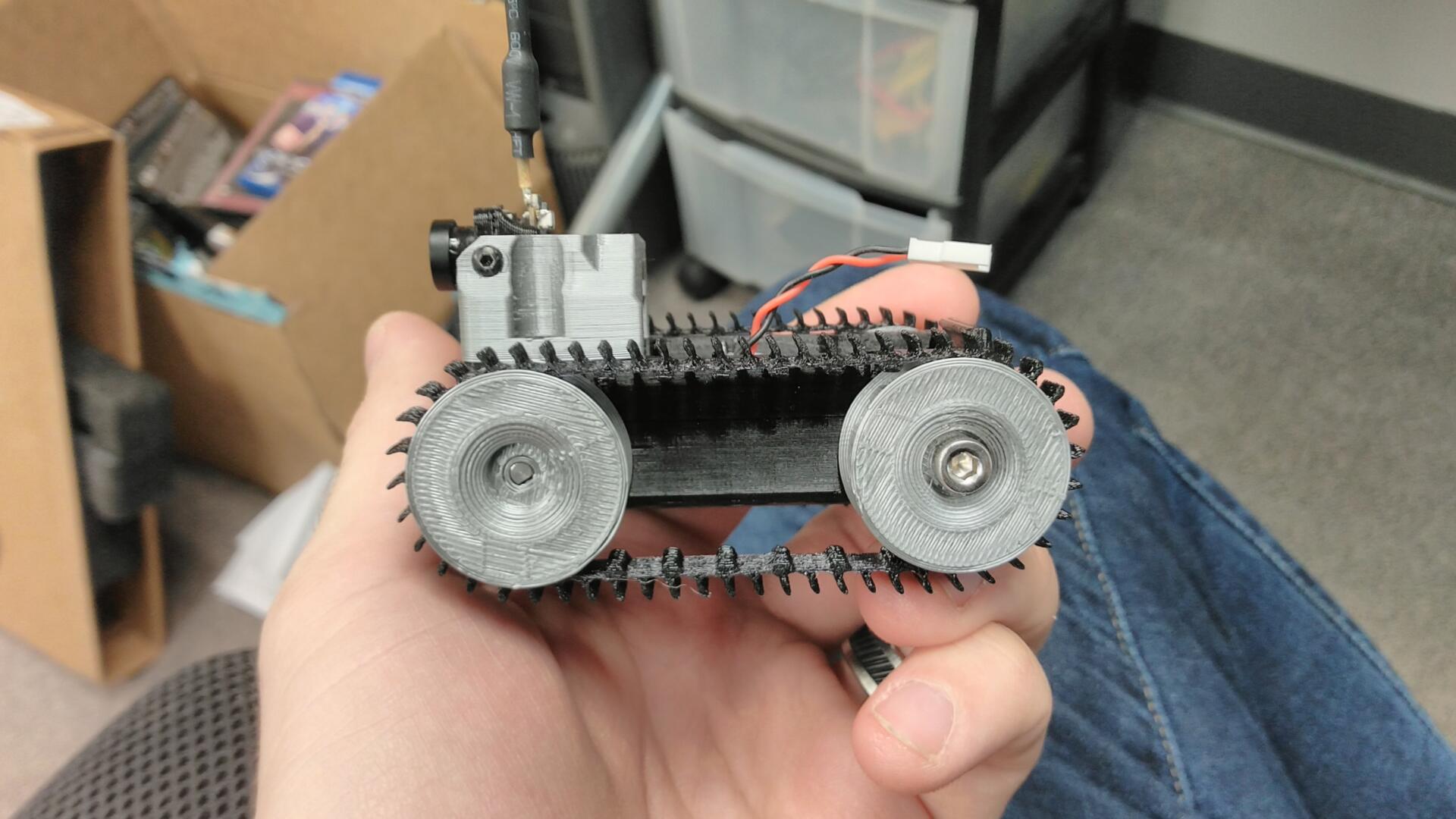

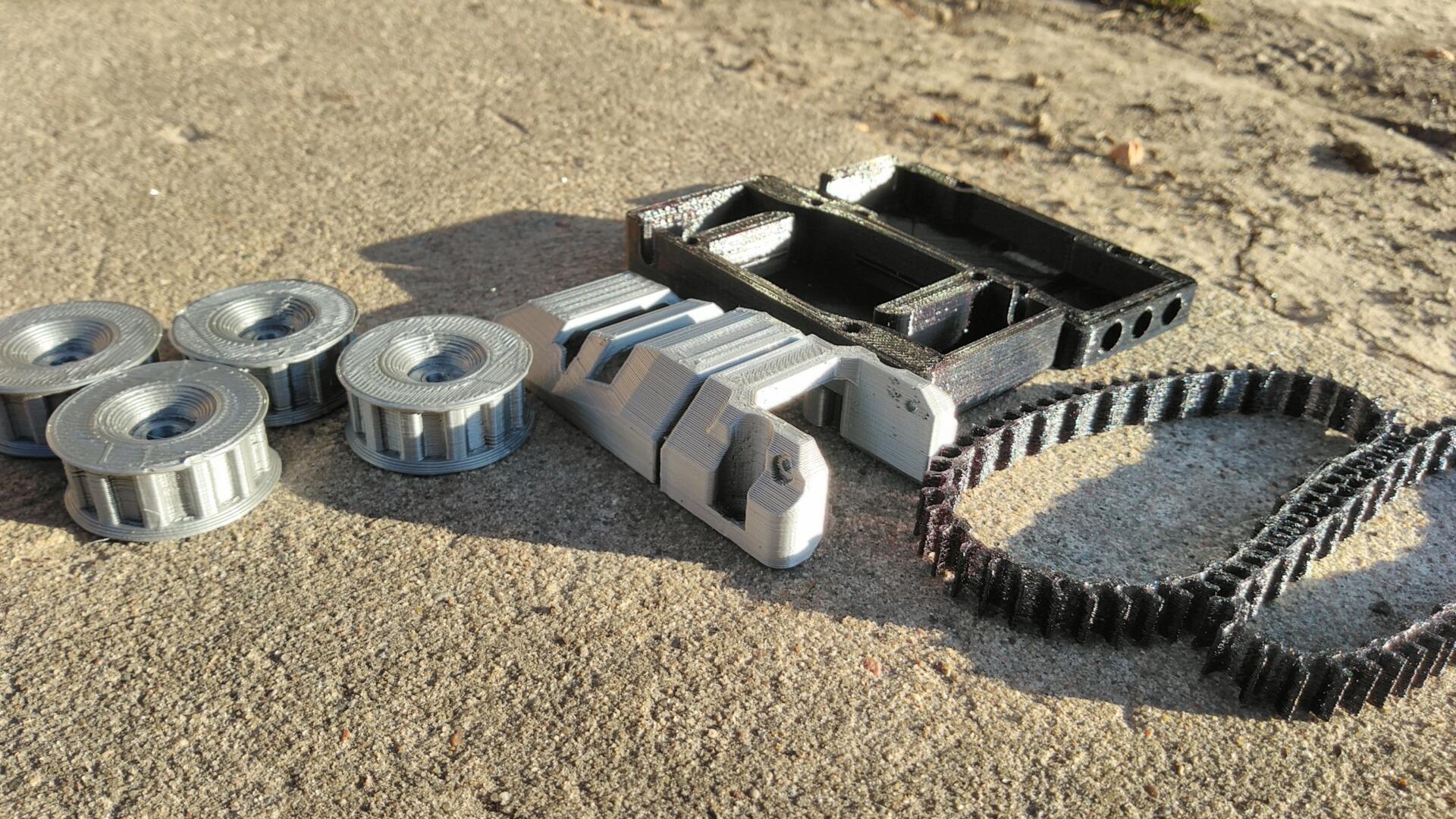

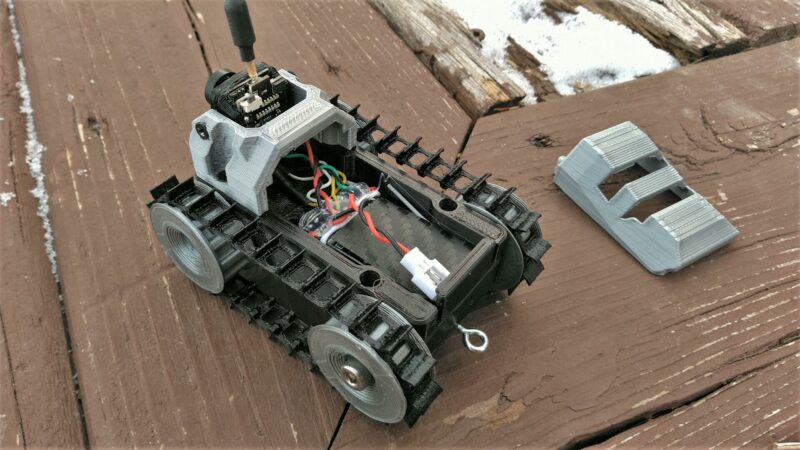

The entire tub chassis is 3D printed, along with the tracks, which are designed to print in TPU. The lower chassis houses dual N20 gear-motors to power the tracks. The camera angle is adjustable, and the chassis has the option to add 5mm LEDs for headlights.
The Pilot Trak series of rovers are designed to use Hobby FPV Gear, which varies depending on which brand of transmitter and FPV gear you choose. While I give some recommendations and build guides, you will have to have a general knowledge of Hobby FPV gear, soldering, and general electronics to complete assembly.
Features
- Low Parts Count
- Dual N20 Gear Motors
- 5mm LED Headlights (optional)

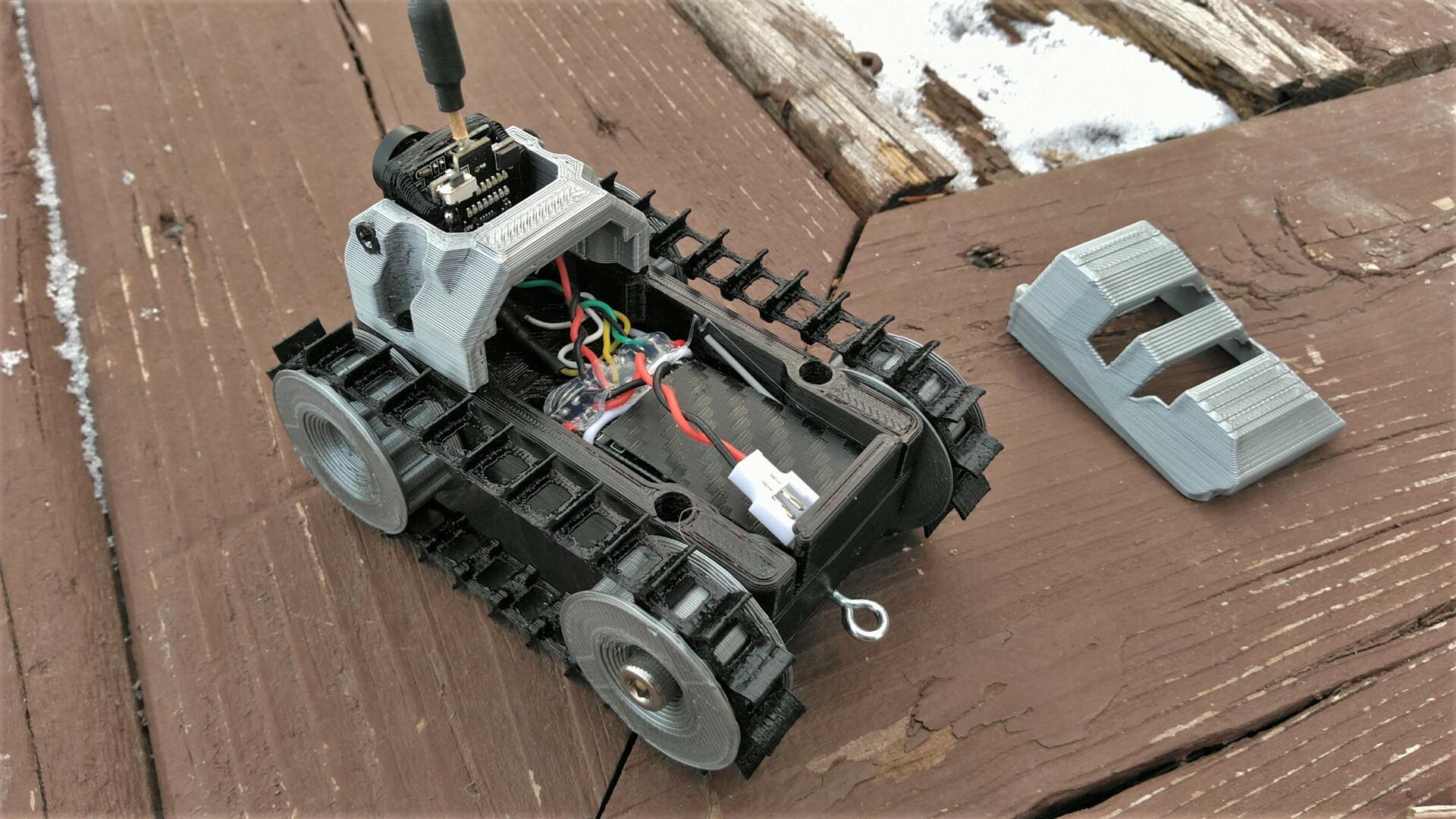

- Hole in rear for optional screw eye hook – originally a hook for pulling string, it also functions as a wheelie bar
- Adjustable Camera Mount

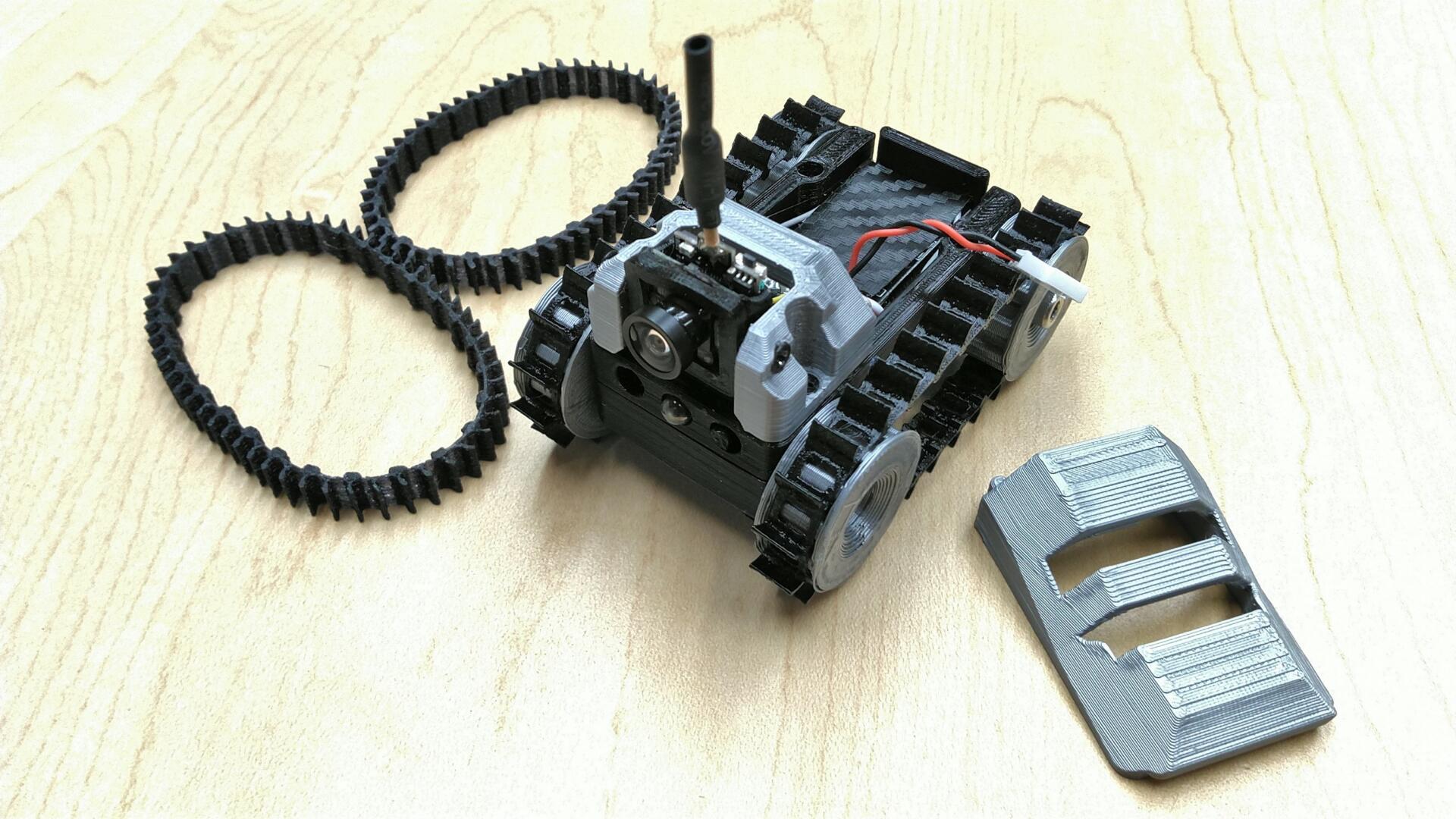

- Printable TPU Tracks
- Tiny!
Parts included with Bind and Drive version
The Bind and Drive version includes the complete assembled rover with battery, USB charger, and DSMX receiver. You will need your own Spektrum Compatible Transmitter and 5.8ghz FPV Goggles.
Parts Lists – All Amazon Links are Paid Promotional Links
Screws / Hardware
- 5 x 8mm Phillips Self Tapping Screws: https://amzn.to/3tocdBp
- M3 x 4mm Grub Screw / Set Screws: https://amzn.to/3rt3v3l
- M4 x 16mm Cap Screws / Axle Screws : https://amzn.to/36Dvghr
Electronics
- Two Pack N20 Gear Motor: https://amzn.to/3tljXUU
- Micro FRSKY Receiver: https://www.banggood.com/2_4G-8CH-D8-Mini-FrSky-Compatible-Receiver-With-PWM-PPM-SBUS-Output-p-1140478.html
- Walkera Micro Battery Connector: https://www.banggood.com/Walkera-Mini-Super-CP-Li-Po-Battery-1s-Plug-1-to-4-Charging-Cable-DIY-p-78817.html
- Micro 1S ESC: https://www.banggood.com/2_7A-1S-Dual-Way-Micro-Brush-ESC-3_3-6V-Winch-Reversing-with-Overheat-Out-of-Control-Protection-for-DIY-RC-Model-p-1533777.html
- Micro FPV Camera: https://www.banggood.com/Eachine-TX06-700TVL-FOV-120-Degree-5_8Ghz-48CH-Smart-Audio-Mini-FPV-Camera-Support-Pitmode-AIO-Transmitter-For-RC-Drone-Tiny-Whoop-p-1413572.html
Plastic
- SainSmart Black TPU: https://amzn.to/3tktefM
- PLA, Black (Or other colors): https://amzn.to/3riIl7Y
